Resizing Volumes

One of the benefits of Brightbox, is the flexibility you have when you need to increase the resources allocated to your Cloud Servers.

Whenever you need more storage allocated to a Cloud Server you can either:

• Attach additional Volumes
• Resize the Cloud Server (for Server Types with local SSD storage), or
• Resize an existing Volume – which is the subject of this guide

Resize the volume

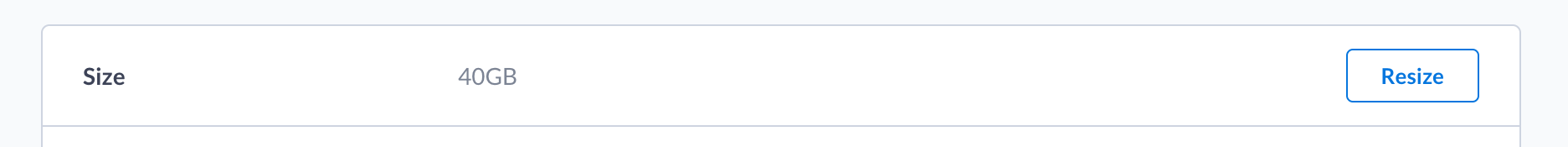

The current size of a volume can be viewed in the volume details view.

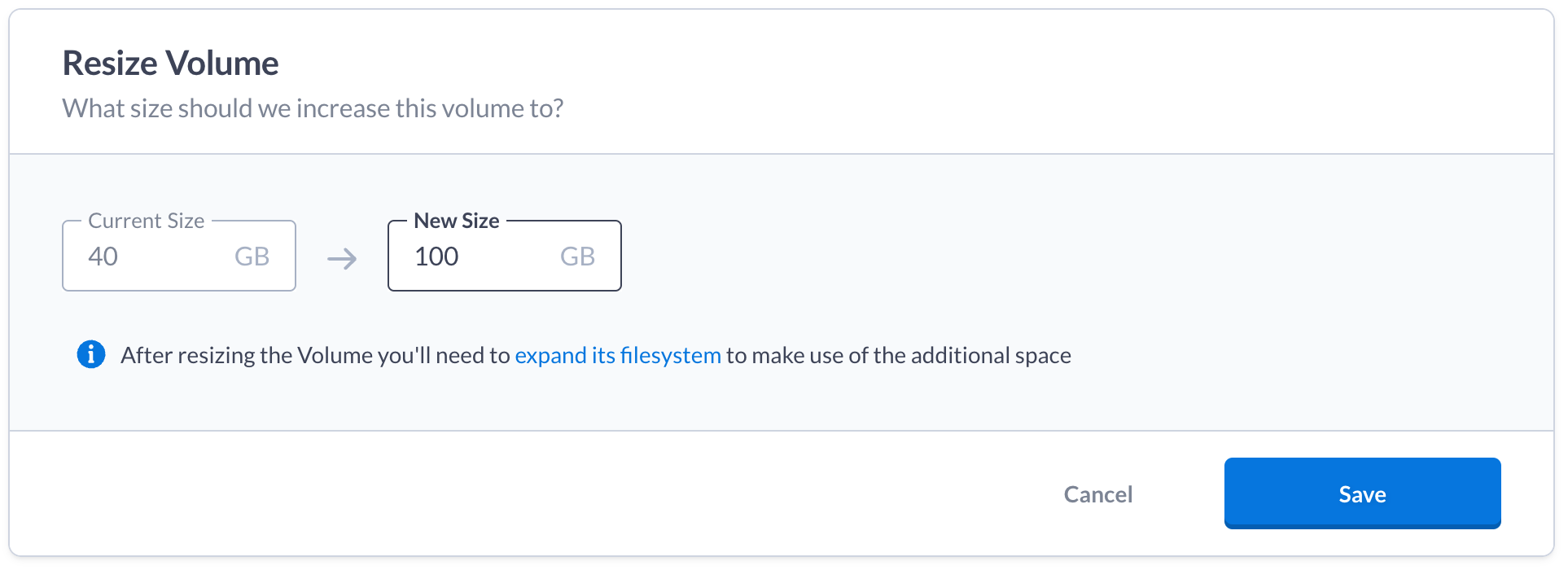

Click the Resize button and you’ll be directed to the Resize Volume panel.

Choose the new volume size you require and click Save.

You’ll be presented with a confirmation dialogue and if you’re happy to proceed, click the Resize Volume button.

Extend the filesystem

The resize happens almost instantly but its filesystem must be extended before you can make use of the additional space.

Grow the partition (if required)

For unpartioned volumes such as auto-formatted additional volumes, you can skip straight to Resize the filesystem below.

For partitioned volumes, such as boot volumes created with an OS image, you’ll first need to grow the root partition.

To see the current list of partitions:

$ lsblk /dev/vda

NAME    MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
vda     252:0    0  100G  0 disk
├─vda1  252:1    0 39.9G  0 part /
├─vda14 252:14   0    4M  0 part
└─vda15 252:15   0  106M  0 part /boot/efi

In this example, we have resized the Volume from 40GB to 100GB. The vda device is now showing as 100GB but the vda1 partition mounted at / is still ~40GB and needs to be “grown” to use the available space:

$ sudo growpart /dev/vda 1

CHANGED: partition=1 start=227328 old: size=83658719 end=83886047 new: size=209487839 end=209715167

We can now confirm that the size of the vda1 partition matches the increased volume size:

$ lsblk /dev/vda

NAME    MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
vda     252:0    0  100G  0 disk
├─vda1  252:1    0 99.9G  0 part /
├─vda14 252:14   0    4M  0 part
└─vda15 252:15   0  106M  0 part /boot/efi

The filesystem itself can now be resized to fit the partition.

Resize the filesystem

You need to use the appropriate resize tool for your filesystem. Most of our official images use ext4 or xfs.

For ext4 use resize2fs:

$ sudo resize2fs /dev/vda1

resize2fs 1.46.5 (30-Dec-2021)
Filesystem at /dev/vda1 is mounted on /; on-line resizing required
old_desc_blocks = 5, new_desc_blocks = 13
The filesystem on /dev/vda1 is now 26214400 (4k) blocks long.

For xfs use xfs_growfs:

$ sudo xfs_growfs /dev/vda1

meta-data=/dev/vda1              isize=512    agcount=16, agsize=655360 blks
        =                       sectsz=512   attr=2, projid32bit=1
        =                       crc=1        finobt=1, sparse=1, rmapbt=0
        =                       reflink=1    bigtime=0 inobtcount=0
data     =                       bsize=4096   blocks=10485760, imaxpct=25
        =                       sunit=16     swidth=16 blks
naming   =version 2              bsize=4096   ascii-ci=0, ftype=1
log      =internal log           bsize=4096   blocks=5120, version=2
        =                       sectsz=512   sunit=16 blks, lazy-count=1
realtime =none                   extsz=4096   blocks=0, rtextents=0
data blocks changed from 10485760 to 26214400
